SL-030 Digital Surface Resistivity Tester Antistatic Surface Resistance Meter ESD Testing Device
item No : SL-030
SL-030 is an ultra wide-range, battery operated, portable instrument for measuring Surface Resistivity of virtually any flat surface conforming to ASTM D-257 standard by using recommended parallel bar sensing probe. In the circuit industry, products such as packaging materials, ESD shielding bags, work bench surfaces, static dissipative table and floor mats, conveyor belts, etc, have resistance values which need to conform to stringent specifications, Moreover, these values are expected to fall with in specified limits. The Surface Resistivity Meter can play a vital role in monitoring and checking the resistivity characteristic of the above items.
SL-030 Digital Surface Resistivity Tester Antistatic Surface Resistance Meter ESD Testing Device
2. Using sophisticated production technology, this tester has excellent performance and high measurement accuracy.
3. With a lightweight and novel design, simple and delicate appearance, and is a good choice for measuring resistivity.
4. Small in size, light in weight, easy to carry, can be carried around, simple to operate and convenient to use.

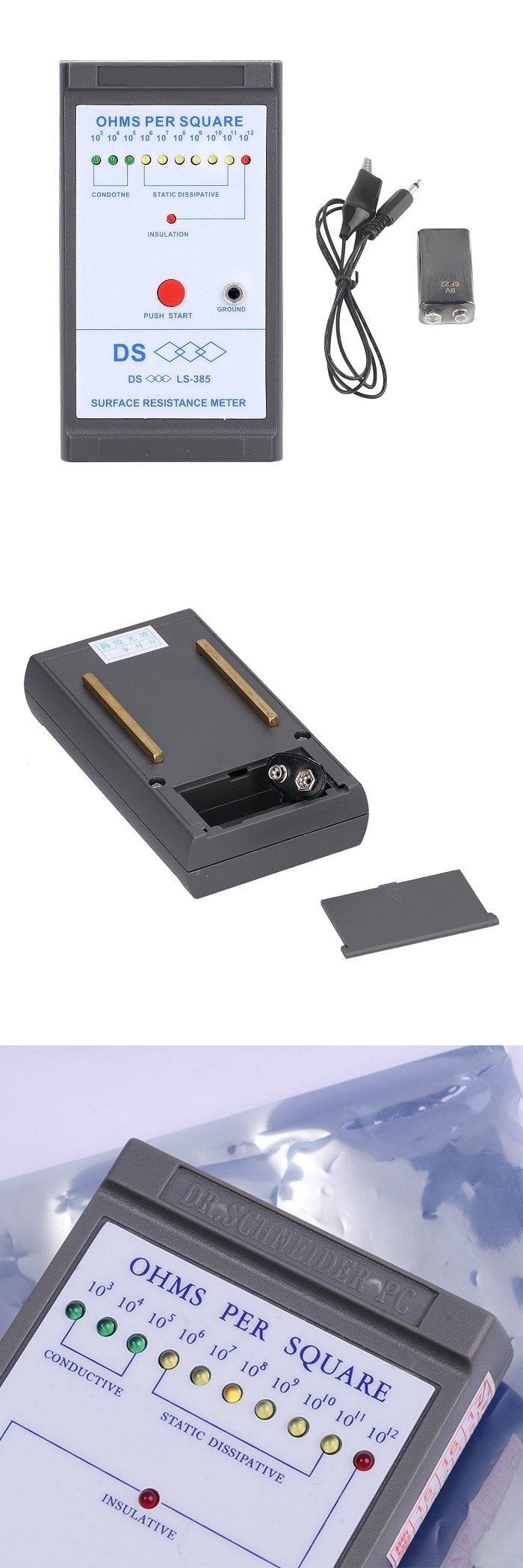

5. The copper strip test line on the back is close to the object to be tested during measurement, which is convenient and carry.
| Working voltage: | 9V DC |
| Szie: | 137mm (L) X 76mm (W) X 30mm (H) |
| Workload: | 40 hours |
| Accuracy: | 1/decade |
| Weight: | 120g |
| Operating temperature: | 0 ° C-50 ℃ |
| Operating relative humidity: | 0% -90% RH |
Instruction to use:

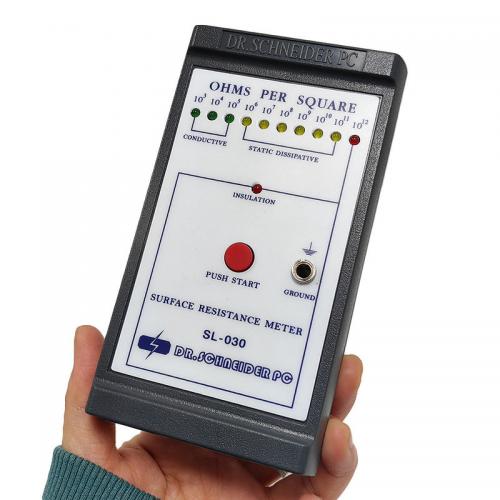

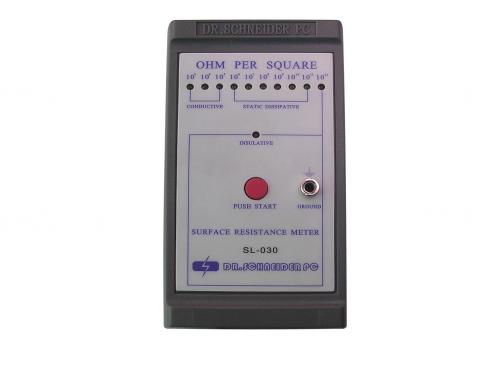

Place the meter on the material to be tested and push the RED button in the middle of the unit. The unit measures the resistance between two electrodes on the back of the meter to determine surface resistivity, The LED that is lit will indicate the surface resistivity in ohms per square.
Key Features:
-
Precise Measurement Capabilities
Utilizing advanced electronics and high-precision sensors, this surface resistance tester provides reliable measurements with an accuracy of ±10% or ±0.25 decade, making it ideal for static dissipation performance tests. -
Broad Measurement Range
With a measurement range extending from 10³ Ω to 10¹² Ω, this device is versatile enough to test the surface resistance of various materials across multiple industries. -
User-Friendly Operation
Designed for simplicity, the tester is easy to use without requiring specialized training. Users can easily conduct tests by positioning the device on the material's surface and pressing the measurement button for immediate results. -
Multifunctional Capabilities
Beyond surface resistance testing, certain models feature built-in temperature and humidity sensors, allowing for simultaneous environmental data readings to complement the surface resistance measurements. -
Built-in Alarm Feature
Equipped with an alert function, the tester will signal with a light when the tested object approaches the insulation threshold, providing an additional layer of safety during tests. -
Stable and Reliable
Engineered for long-term use, this instrument is known for its stability and durability, ensuring that it performs consistently over time without frequent maintenance or malfunction. -
Compact and Portable Design
Lightweight and easy to transport, this device is perfectly suited for on-the-go testing in various environments, whether on the factory floor or in the field.
Applications:
-
Electronic Manufacturing
This tester is crucial for evaluating the anti-static properties of electronic components, ensuring that products meet quality standards and are safe from electrostatic damage. -
Aerospace
In aerospace, it is essential to measure surface resistance to guarantee the safety and reliability of materials and equipment used in aircraft and space technologies. -
Chemical Industry
Static electricity can be hazardous in chemical environments, and this device helps prevent dangerous incidents like fires or explosions by ensuring materials meet anti-static requirements. -
Textile Industry
Particularly in fields like healthcare and electronics, textile materials must maintain low static levels, making this tester an essential tool for ensuring product safety and quality. -
Medical Devices
The tester helps ensure that materials used in medical devices do not generate harmful electrostatic charges that could pose risks to patients, maintaining the devices’ reliability and safety.
