Surface Resistance Meter ACL 800 Digital Megohmmeter

ACL Staticide ACL 800 Specifications

Test your static-dissipative surfaces for electrical resistivity and resistance effortlessly with this digital megaohmmeter.
The included probes allow simple measurements of point-to-point resistance (RTT) and resistance to ground (RTG), while the digital LCD delivers precise results.

Measurement Item	Resistivity, temperature, humidity
Temperature Range	0 to 37.7°C
Resistance Range	10³ to 10¹² Ω
Resistivity Range	10³ to 10¹² Ω/square
Relative Humidity Range	10 to 90%
Test Voltage Range	10/100 V
Accuracy	10³ to 10⁸ Ω: 10% 10⁹ to 10¹⁰ Ω: 15% 10¹¹ to 10¹² Ω: 25%
Display	Alphanumeric LCD
Product Weight	14 lbs (6.35 kg)

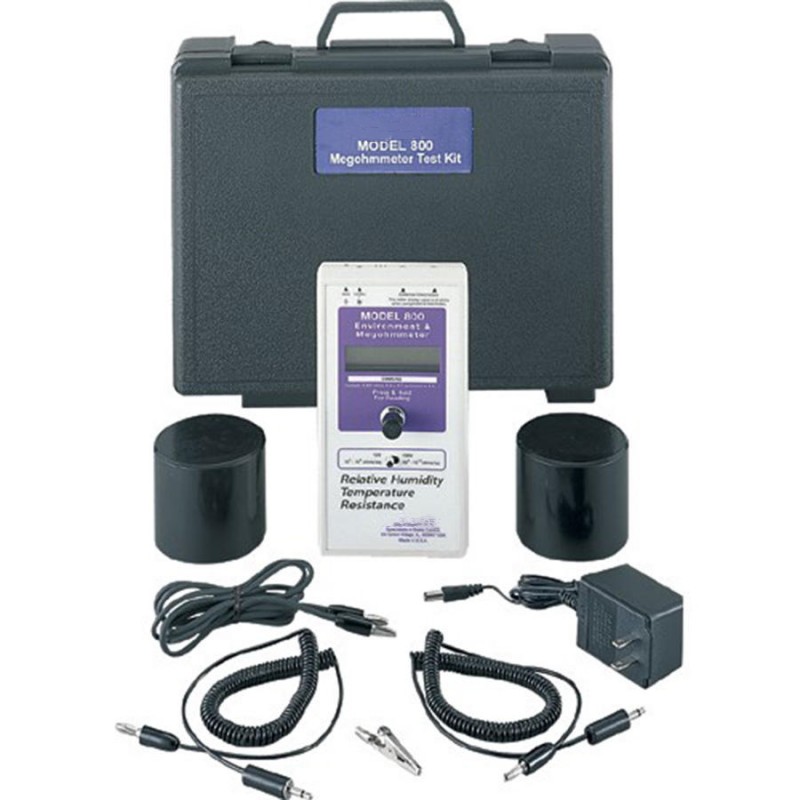

What's included with the ACL Staticide ACL 800

• Digital Megohmmeter
• Calibration Certificate Traceable to NIST
• 2 x Probes
• 2 x Cables
• 9 V Battery
• Foam-Lined Carrying Case

Applications

• Engineering
• Maintenance
• Quality Control
• Incoming Inspection
• Manufacturing
• Research
